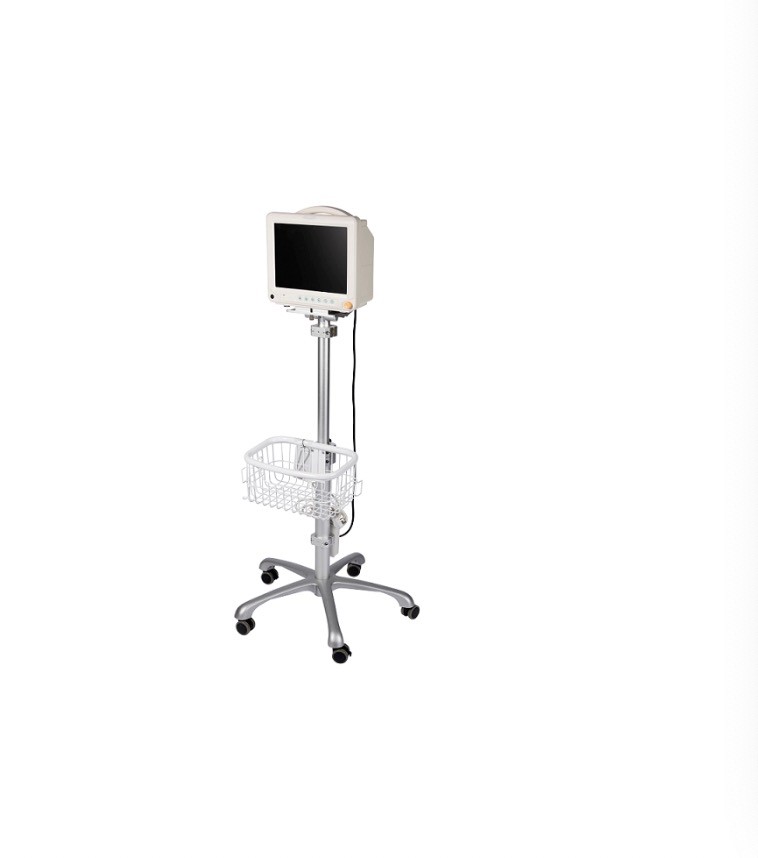

Medical Multi-Parameter Patient Monitor TX-99BZ014
Medical multi parameter patient monitors are mostly used in bedsides for patients, in Intensive care units, acute care units and emergency rooms in hospital.
0
Optional
-Built-in recorder and battery and printer -Central Station Software -Switch
-An optional USB Mouse/Keyboard control eases navigation and data entry.
-An optional HDMI output eases observation from a long distance.
Features
-12.1" color TFT display, up to 12 waveforms
-One level menu, easy to use
-Parameters including ECG/SpO2/PR/TEMP/ NIBP/HR
-Maximum 720-hour graphic and tabular trends of all parameters
-Built-in recorder and battery and printer
Medical multi parameter patient monitor is Suitable for adult, pediatric, and neonatal patient Arrhythmia analysis, ST calculation, Pace analysis -Anti-ESU, anti- defibrillator
-Standard network interface, can connect to Central monitor system
Core
• Newly advanced A8 mainboard with Linux OS, calculating speed is 4 times faster than traditional products
• Support storage of 2160 hours trend table and graph review, 2 hours waveform review, 2000 groups NIBP review, and 2000 alarm events review
Body
• 12.1 inches high-brightness TFT LED
• Support display 9~13 waveforms
• Support 7 channel ECG waveform display simultaneously
• Optional touch screen
• Optional HDMI output
Printer
• Built-in high-speed 50mm thermal printer
• Central System• Optional Build-in wireless network module, supporting wired or wireless connection to the central monitoring station.
• Optional Support HL7 (Health Level Seven)• Drug calculation and titration table
• Support multi-language display
Alarm
• Three-level acousto-optic alarm
• Sensor-off alarm
• Paper out alarm
• Support alarm review
• Support alarm pause
Linux OS
• Support operation with mouse and computer keyboard (option)
• Multi-display mode to meet the different clinical requirements, including standard interface, big font, OxyCRG, trend graph, NIBP review, and full leads ECG interface.
• NIBP self-test mode: including overpressure test, static pressure test, and air leakage test.
• Generate ID automatically when registering a new patient
• Support medical history search by patient ID, name, and mobile number
• 18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection
• Support online software upgrading by net/USB
Standard Config. | 12.1 inch LED, 3/5 Lead ECG, NIBP, SpO2, Pulse Rate, Temperature, Respiration |
Optional Config. | 1/2 IBP, 2-Temperature, Nellcor SpO2, Masimo SpO2, |
Optional Accessories: | Touch Screen, Printer, USB Mouse/Computer Keyboard Input Function, |
Remark | The touch screen and USB mouse/ computer keyboard is not compatible by now. |
